Advanced Dicing Tool - DISCO DAD 3350

Dicing Tool-Disco 3350

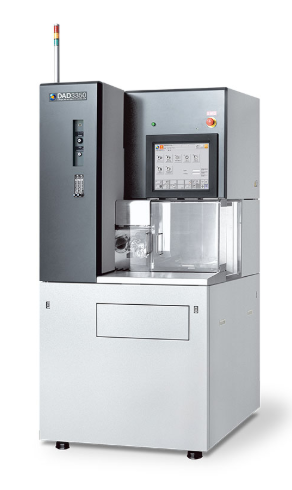

DAD3350 can handle a maximum of Φ8-inch. Selecting a 2.2 kW high-torque spindle (optional) makes it possible to process silicon up to difficult-to-process materials, such as ceramic. In addition, the microscope includes an air blow mechanism and a lens shutter to prevent contamination. Through condition monitoring the processing conditions and various other statuses can be known at any given time.

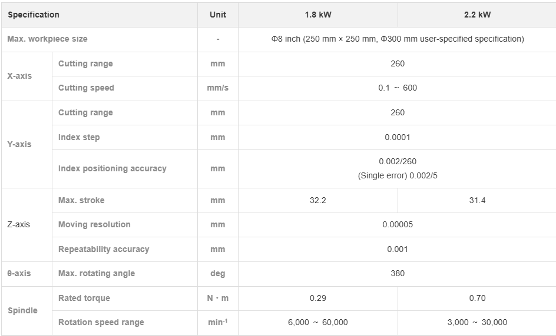

CAPABILITIES: To improve equipment productivity, auto alignment, auto focus, auto kerf check, and other image recognition functions have been installed.





Booking Form





Aurel C920 Screen printer

AUREL Screen Printer

Aurel C920 Screen printer (ANALOGUE PROJECT) is a high precision free stand screen/stencil printing machine and meets the requirements for high quality automatic printing on large areas. The main application in the electronic are thick film, SMT, polymeric pastes, solar cells. C920 can be equipped with a vision system and two TV cameras to simplify the alignment operation between screen/stencil and substrate.





Booking Form





XPTL DELTA printing system



XPTL DELTA

XPTL DELTA printing system (ANALOGUE project)is an open prototyping platform delivering reliable, repeatable, and durable results for high performance materials. Easy to operate and maintain. Ideal tool for R&D in various microelectronics applications.

Printing on the edge - Edge interconnections printing with high resolution traces (10 µm), possibility to print over the edge of glass, silicon and flexible foils.

Redistribution layer prototyping - All printed RDL structure, down to 1 μm or 1 μm L/S density, variable materials, for example, metallic nanoparticle paste and high viscous polyimide.

Chip interconnection - Reliable connection for flexible hybrid electronics and advanced IC packages, high-density interconnections on stacked chips (Resolution <10 μm or 10 μm L/S), no satellite droplets and line width homogeneity to prevent electrical shorts.
